Bore size(mm) | 10 | 16; 20;25 | 32 |
Acting type | Double acting | Double acting | Double acting |
Fluid | Air(to be filtered by 40um filter element) | Air(to be filtered by 40um filter element) | Air(to be filtered by 40um filter element) |
Operating pressure | 0.2-1.0MPa(29-145psi) | 0.15-1.0MPa(22-145psi) | 0.15-1.0MPa(22-145psi) |
Proof pressure | 1.5MPa(215psi) | 1.5MPa(215psi) | 1.5MPa(215psi) |
Temperature ℃ | 20-70 | -20-70 | -20-70 |
Speed range mm/s | 30-500 | 30-500 | 30-500 |
Adjustable stroke mm | -5-0 | -5-0 | -5-0 |
Stroke tolerance | ≤100(0-+1.0 ) > 100(0-+1.5) | ≤100(0-+1.0 ) > 100(0-+1.5) | ≤100(0-+1.0 ) > 100(0-+1.5) |
Cushion type | Bumper | Bumper | Bumper |
Non-rotating tolerance | ±0.4° | ±0.3° | ±0.3° |
Port size | M5x0.8 | M5x0.8 | 1/8" |
TN | 20 | x | 50 | S |
Model | Bore size | Stroke | Magnet | |

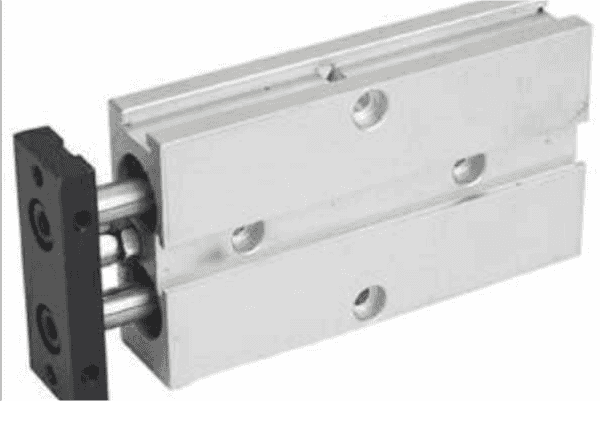

TN: Twin-rod cylinder (Double acting type) | 10 16 20 25 32 | Refer to stroke table for details | S: With magnet |
1.When load changes in the work, the cylinder with abundant output capacity shall be selected.
2.Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion;
3.Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder;
5. The medium used by cylinder shall be filtered to 40μm or below.
6.As both the front cover and piston are short, too large stroke can not be selected,
7.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
8.The cylinder shall avoid redial load in operation to maintain the normal and extend service life.
9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust cap shall be inserted into the inlet and outlet ports.As the precision of the
manufacture and guide is high, Please do not dismantle the fixed block or cylinder cover.
