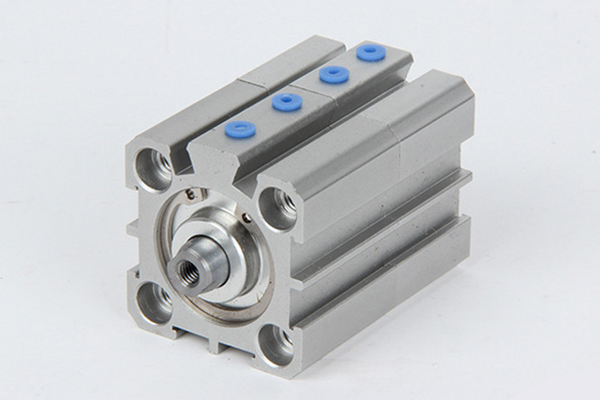

SDA Series

1、Manufactured by our enterprise;
2、Riveted structure is adopted to connect the cylinder body and back cover and piston and piston rod to make it compact and reliable;
3、The inner diameter of the body is treated with rolling followed by the treatment of hard anodizing forming an excellent abrasion resistance and durability;
4、The seal of piston adopts heterogeneous twoway seal structure. It has compact dimension and the function of oil reservation;
5、Compact structure can effectively save installation space;
6、There are magnetic switch slots around the cylinder body which is convenient to install sensor switch;
7、Mounting accessories with various specifications are optional.le.

Specification

Bore size(mm)12; 16; 20; 2532; 4050; 6380; 100
Acting typeDouble actingDouble actingDouble actingDouble acting
Single acting_Push type、Single acting_Pull typeSingle acting_Push type、Single acting_Pull typeSingle acting_Push type、Single acting_Pull type-
FluidAir(to be filtered by 40um filter element)Air(to be filtered by 40um filter element)Air(to be filtered by 40um filter element)Air(to be filtered by 40um filter element)
Operating pressureDouble acting0.15-1.0MPa(22-145psi)(1.5-10.0bar)0.15-1.0MPa(22-145psi)(1.5-10.0bar)0.15-1.0MPa(22-145psi)(1.5-10.0bar)0.15-1.0MPa(22-145psi)(1.5-10.0bar)
Single acting0.2-1.0MPa(28-145psi)(2.0-10.0bar0.2-1.0MPa(28-145psi)(2.0-10.0bar0.2-1.0MPa(28-145psi)(2.0-10.0bar0.2-1.0MPa(28-145psi)(2.0-10.0bar
Proof pressure1.5MPa(215psi)(15bar)1.5MPa(215psi)(15bar)1.5MPa(215psi)(15bar)1.5MPa(215psi)(15bar)
Temperature ℃-20-70-20-70-20-70-20-70
Speed range mm/sDouble acting:30-500 Single acting:50-500Double acting:30-500 Single acting:50-500Double acting:30-500 Single acting:50-500Double acting:30-500 Single acting:50-500
Stroke toleranceStroke≤100(0-+1.0) Stroke>100(0-+1.5)Stroke≤100(0-+1.0) Stroke>100(0-+1.5)Stroke≤100(0-+1.0) Stroke>100(0-+1.5)Stroke≤100(0-+1.0) Stroke>100(0-+1.5)
Cushion typeBumperBumperBumperBumper
Port sizeM5x0.81/8"1/4"3/8"

Order Code

SDA20x30-SB
SDAD20x30-SB
SDAJ20x30-30SB
ModelBore sizeStrokeAdjustable StrokeMagnetRod type
SDA:Compact cylinder(Double acting)12 16 20 25 32
40 50 63 80 100
Refer to stroke
table for details
-Blank: Without
magnet
S: With magnet
Blank: Famale
thread
B: Male thread
SSA: Compact cylinder(Single acting-push)12 16 20 25
32 40 50 63
-
STA:Compact cylinder(Single acting-pull)12 16 20 25
32 40 50 63
-
SDAD: Compact cylinder(Double rod)12 16 20 25 32
40 50 63 80 100
-
SDAJ: Compact cylinder(Adjustable stroke)12 16 20 25 32
40 50 63 80 100
10 20 30 40
50 75 100

Installation & Usage

  1. When load changes in the work, the cylinder with abundant output capacity shall be selected.
  2. Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
  3. Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
  4. Dirty substances in the pipe must be eliminated before cyllinder is connected with pipeline to prevent the entrance of particles into the cylinder.
  5. The medium used by cylinder shall be filtered to 40μm or below.
  6. As both of the front cover and piston of the cylinder are short, typically too large stroke can not be selected.
  7. Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
  8. The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
  9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports. The front and back cover can not be dismantled, which shall be  especially noticed.
