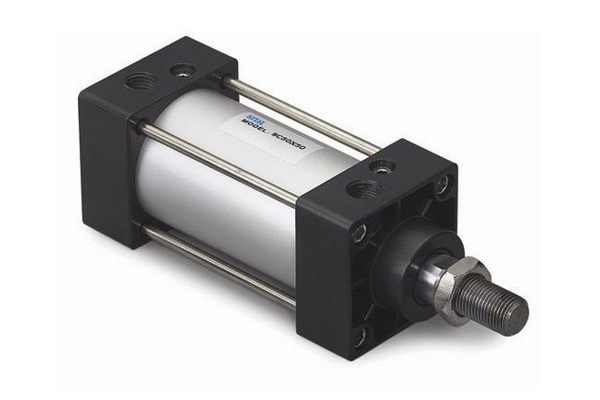

| Bore size(mm) | 32 | 40;50 | 63 | 80 | 100 | |
| Acting type | Double acting | Double acting | Double acting | Double acting | Double acting | |
| Fluid | Air(to be filtered by 40um filter element) | Air(to be filtered by 40um filter element) | Air(to be filtered by 40um filter element) | Air(to be filtered by 40um filter element) | Air(to be filtered by 40um filter element) | |
| Mounting type | SC | Basic FA FB CA CB LB TC TCM1 | Basic FA FB CA CB LB TC TCM1 | Basic FA FB CA CB LB TC TCM1 | Basic FA FB CA CB LB TC TCM1 | Basic FA FB CA CB LB TC TCM1 |
| SCD.SCJ | Basic FA LB TC TCM1 | Basic FA LB TC TCM1 | Basic FA LB TC TCM1 | Basic FA LB TC TCM1 | Basic FA LB TC TCM1 | |
| Operating pressure | 0.15-1.0MPa(22-145psi)(1.5-10.0bar) | 0.15-1.0MPa(22-145psi)(1.5-10.0bar) | 0.15-1.0MPa(22-145psi)(1.5-10.0bar) | 0.15-1.0MPa(22-145psi)(1.5-10.0bar) | 0.15-1.0MPa(22-145psi)(1.5-10.0bar) | |
| Proof pressure | 1.5MPa(215psi)(15bar) | 1.5MPa(215psi)(15bar) | 1.5MPa(215psi)(15bar) | 1.5MPa(215psi)(15bar) | 1.5MPa(215psi)(15bar) | |
| Temperature ℃ | -20-70 | -20-70 | -20-70 | -20-70 | -20-70 | |
| Speed range mm/s | 30-800 | 30-800 | 30-800 | 30-800 | 30-800 | |
| Stroke tolerance | 0-250(0-+1.0) 251-1000(0-+1.5) 1001-1500(0-+2.0) | 0-250(0-+1.0) 251-1000(0-+1.5) 1001-1500(0-+2.0) | 0-250(0-+1.0) 251-1000(0-+1.5) 1001-1500(0-+2.0) | 0-250(0-+1.0) 251-1000(0-+1.5) 1001-1500(0-+2.0) | 0-250(0-+1.0) 251-1000(0-+1.5) 1001-1500(0-+2.0) | |
| Cushion type | Variable cushion | Variable cushion | Variable cushion | Variable cushion | Variable cushion | |
| Adjustable cushion stroke | 21 | 21 | 21 | 28 | 29 | |
| Port size | 1/8" | 1/4" | 3/8" | 3/8" | 1/2" |
| SC | 50 | X | 50 | S | |||
| SCD | 50 | X | 50 | S | |||
| SCJ | 50 | X | 50 | - | 20 | S | |
| Model | Bore size | Stroke | Adjustable stroke | Magnet | Mounting type | ||
| SC:Double acting type | 32 40 50 63 80 100 | Refer to stroke table for details | - | Blank: Without magnet S: With magnet | Blank | ||
| - | LB | ||||||
| - | FA | ||||||
| - | FB | ||||||
| - | CA | ||||||
| - | CB | ||||||
| - | TC | ||||||
| SCD: Double rod type | 32 40 50 63 80 100 | Refer to stroke table for details | - | Blank: Without magnet S: With magnet | Blank | ||
| - | LB | ||||||
| SCJ: Adjustable stroke type | 32 40 50 63 80 100 | Refer to stroke table for details | 10 20 30 40 50 75 100 | Blank: Without magnet S: With magnet | FA | ||
| TC |
1. When load changes in the work, the cylinder with abundant output capacity shall be selected.
2.Relative cylinder with high temperature resistance or
corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3.Necessary protection measure shall be taken in the
environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4. Dirty substances in the pipe must be eliminated before
cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5.The medium used by cylinder shall be filtered to 40μm or below.
6.Anti-freezing measure shall be adopted under low
temperature environment to prevent moisture freezing.
7.The cylinder shall be carried out test run without load before application.Prior to run, buffer shall be turned to the minimum and
gradually released to avoid the damage on cylinder caused by excessive impact.
8. The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface.
Anti-dust caps shall be added in air inlet and outlet ports.
