| Model | AC1000-M5 | AC2000-01 | AC2000-02 | AC2500-02 | AC2500-03 | AC3000-02 | AC3000-03 | AC4000-03 | AC4000-04 | AC4000-06 | AC5000-06 | AC5000-10 | |
| Rated Flow | 90 | 500 | 500 | 1500 | 1500 | 2000 | 2000 | 4000 | 4000 | 4500 | 5000 | 5000 | |
| Port Size | M5 | 1/8 | 1/4 | 1/4 | 3/8 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 | |
| Filter Precision | 25 μm | ||||||||||||
| Max. Adjustable Pressure | 1.0 MPa | ||||||||||||
| Proof Pressure Resistance | 1.5 MPa | ||||||||||||
| Operating Temperature Range | 5～60℃ | ||||||||||||
| Range of Adjustable Pressure | 0.05～0.85MPa | ||||||||||||
| Recommended Lubricant | ISO VG 32 | ||||||||||||
| Container Material | Poly Carbonate | ||||||||||||
| Protective Cup Cover | Unavailable | Unavailable | Unavailable | Iron | Iron | Iron | Iron | Iron | Iron | Iron | Iron | Iron | |
| Drain Function | Differential Drain | Differential Drain, Automatic Drain | Differential Drain, Automatic Drain | Differential Drain, Automatic Drain | Differential Drain, Automatic Drain | Differential Drain, Automatic Drain | Differential Drain, Automatic Drain | Differential Drain, Automatic Drain | Differential Drain, Automatic Drain | Differential Drain, Automatic Drain | Differential Drain, Automatic Drain | Differential Drain, Automatic Drain | |
| Valve Type | With Overflow | ||||||||||||
| Assembly | Filter | AF1000-M5 | AF2000-01 | AF2000-02 | AF3000-02 | AF3000-02 | AF3000-02 | AF3000-03 | AF4000-03 | AF4000-04 | AF4000-06 | AF5000-06 | AF5000-10 |
| Regulator | AR1000-M5 | AR2000-01 | AR2000-02 | AR2500-02 | AR2500-02 | AR3000-02 | AR3000-03 | AR4000-03 | AR4000-04 | AR4000-06 | AR5000-06 | AR5000-10 | |
| Lubricator | AL1000-M5 | AL2000-01 | AL2000-02 | AL3000-02 | AL3000-02 | AL3000-02 | AL3000-03 | AL4000-03 | AL4000-04 | AL4000-06 | AL5000-06 | AL5000-10 |
| AC | 4000 | - | 04 | - | D | |
| Model | Specification | Port size | Drain type | Wiring form | ||
| AC: AC Series F.R.L. Combination | 1000 2000 2500 3000 4000 5000 | M5:M5x0.8 01:G1/8 02:G1/4 03:G3/8 04:G1/2 06:G3/4 10:G1 | Blank: Semi-automatic D: Lever auto-drain D1: Lever auto-drain with external thread D2: Pulse auto-drain | Blank:Standard N: Metal cup |

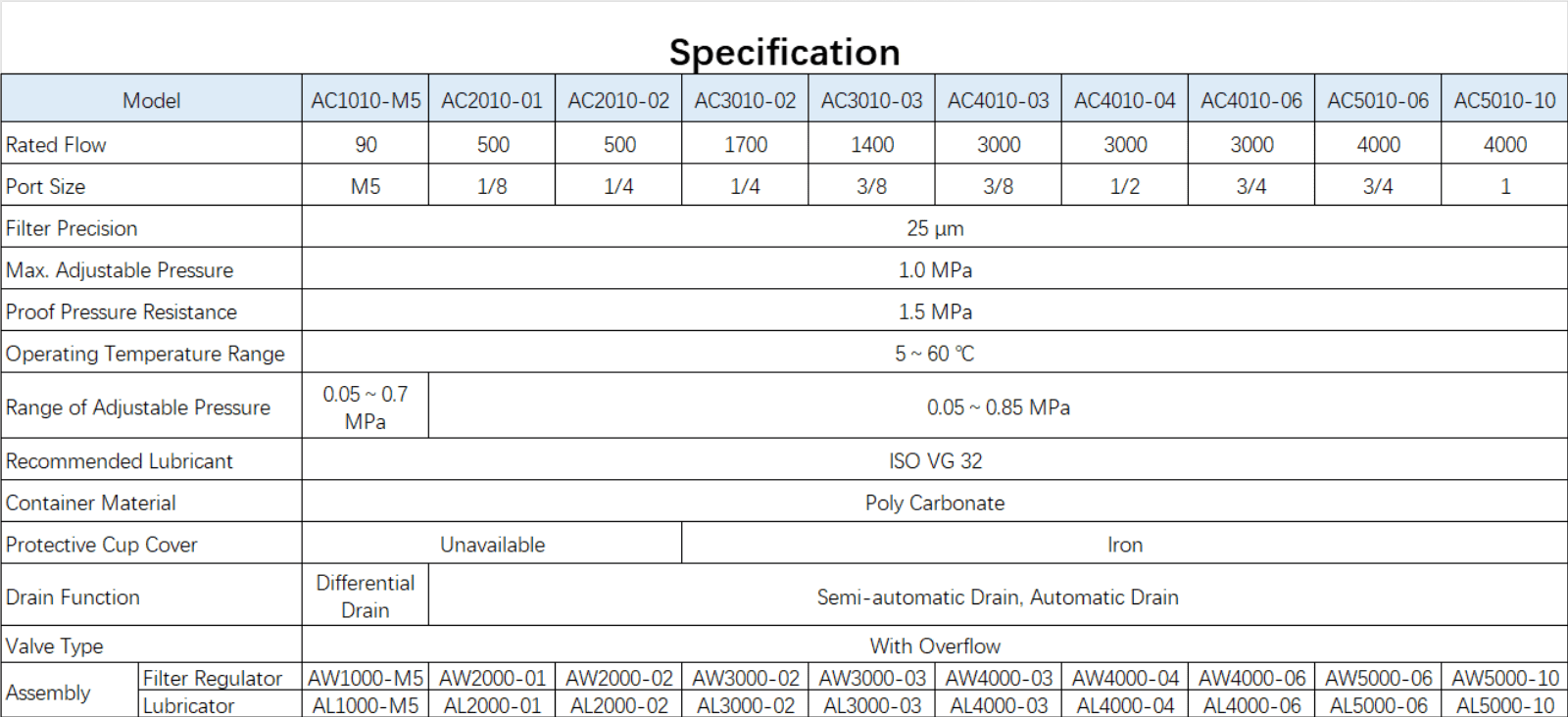

| Model | AC1010-M5 | AC2010-01 | AC2010-02 | AC3010-02 | AC3010-03 | AC4010-03 | AC4010-04 | AC4010-06 | AC5010-06 | AC5010-10 | |
| Rated Flow | 90 | 500 | 500 | 1700 | 1400 | 3000 | 3000 | 3000 | 4000 | 4000 | |
| Port Size | M5 | 1/8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 | |
| Filter Precision | 25 μm | ||||||||||
| Max. Adjustable Pressure | 1.0 MPa | ||||||||||
| Proof Pressure Resistance | 1.5 MPa | ||||||||||
| Operating Temperature Range | 5～60℃ | ||||||||||
| Range of Adjustable Pressure | 0.05～0.7MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | |
| Recommended Lubricant | ISO VG 32 | ||||||||||
| Container Material | Poly Carbonate | ||||||||||
| Protective Cup Cover | Unavailable | Unavailable | Unavailable | Iron | Iron | Iron | Iron | Iron | Iron | Iron | |
| Drain Function | Differential Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | |
| Valve Type | With Overflow | ||||||||||
| Assembly | Filter Regulator | AW1000-M5 | AW2000-01 | AW2000-02 | AW3000-02 | AW3000-03 | AW4000-03 | AW4000-04 | AW4000-06 | AW5000-06 | AW5000-10 |
| Lubricator | AL1000-M5 | AL2000-01 | AL2000-02 | AL3000-02 | AL3000-03 | AL4000-03 | AL4000-04 | AL4000-06 | AL5000-06 | AL5000-10 |

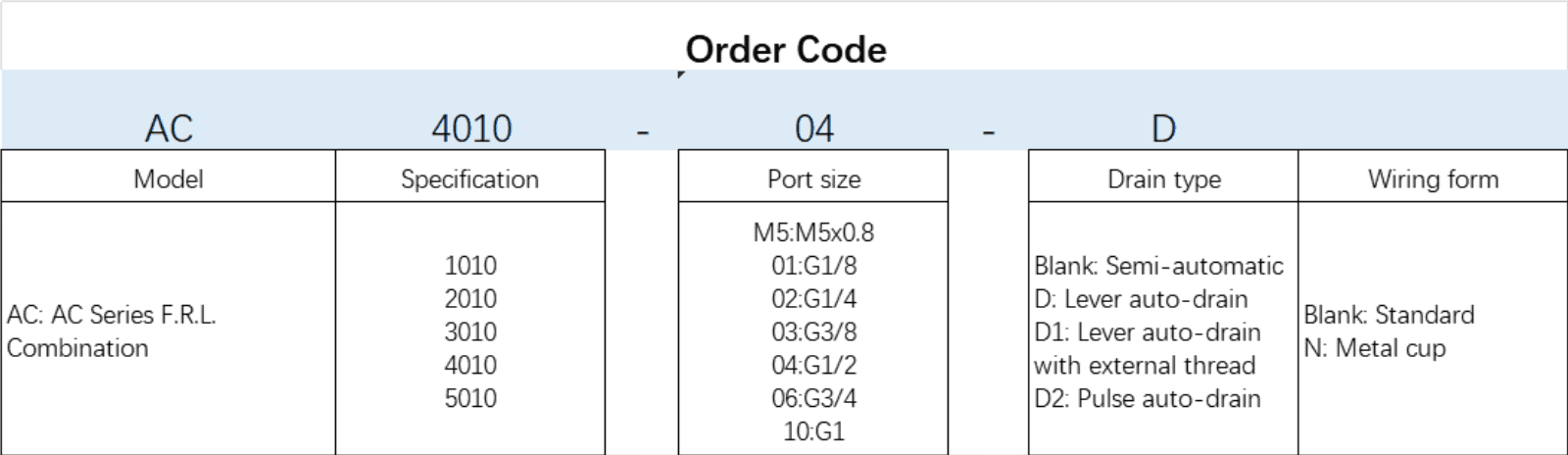

| AC | 4010 | - | 04 | - | D | |
| Model | Specification | Port size | Drain type | Wiring form | ||
| AC: AC Series F.R.L. Combination | 1010 2010 3010 4010 5010 | M5:M5x0.8 01:G1/8 02:G1/4 03:G3/8 04:G1/2 06:G3/4 10:G1 | Blank: Semi-automatic D: Lever auto-drain D1: Lever auto-drain with external thread D2: Pulse auto-drain | Blank:Standard N: Metal cup |

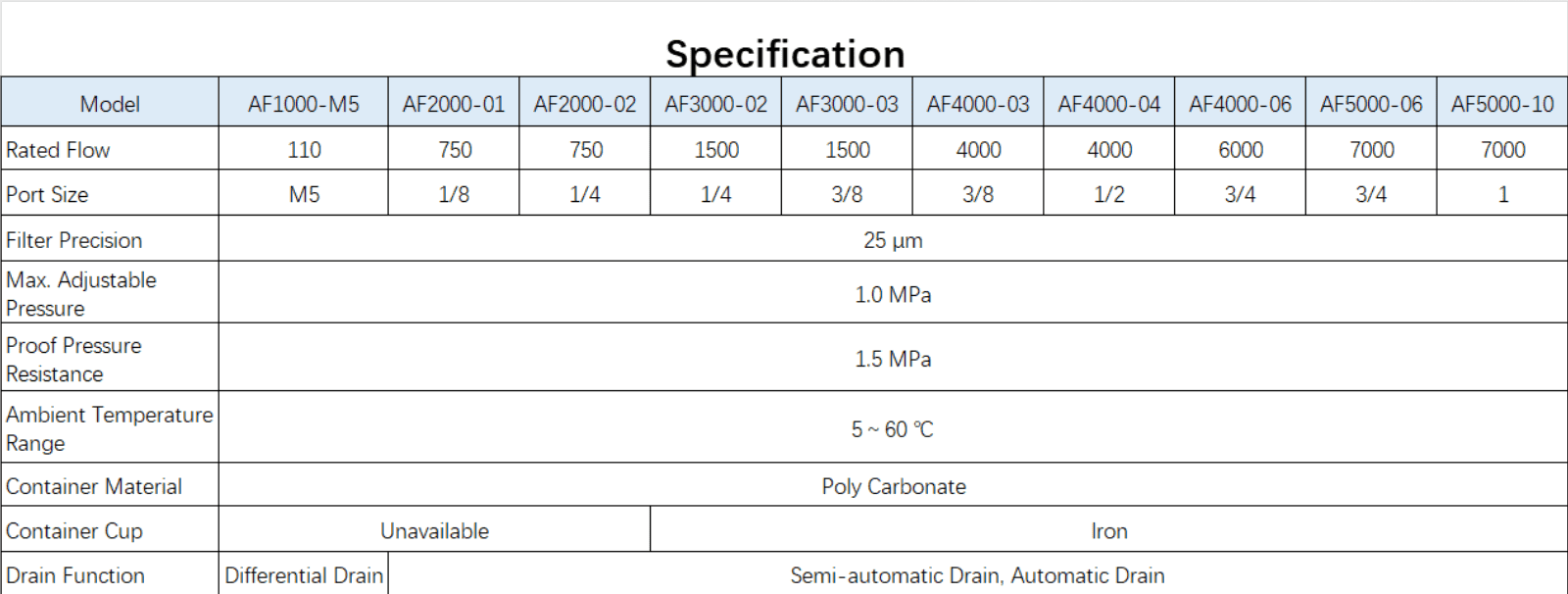

| Model | AF1000-M5 | AF2000-01 | AF2000-02 | AF3000-02 | AF3000-03 | AF4000-03 | AF4000-04 | AF4000-06 | AF5000-06 | AF5000-10 |
| Rated Flow | 110 | 750 | 750 | 1500 | 1500 | 4000 | 4000 | 6000 | 7000 | 7000 |
| Port Size | M5 | 1/8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 |
| Filter Precision | 25 μm | |||||||||
| Max. Adjustable Pressure | 1.0 MPa | |||||||||
| Proof Pressure Resistance | 1.5 MPa | |||||||||
| Ambient Temperature Range | 5～60℃ | |||||||||
| Container Material | Poly Carbonate | |||||||||
| Container Cup | Unavailable | Unavailable | Unavailable | Iron | Iron | Iron | Iron | Iron | Iron | Iron |
| Drain Function | Differential Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain |

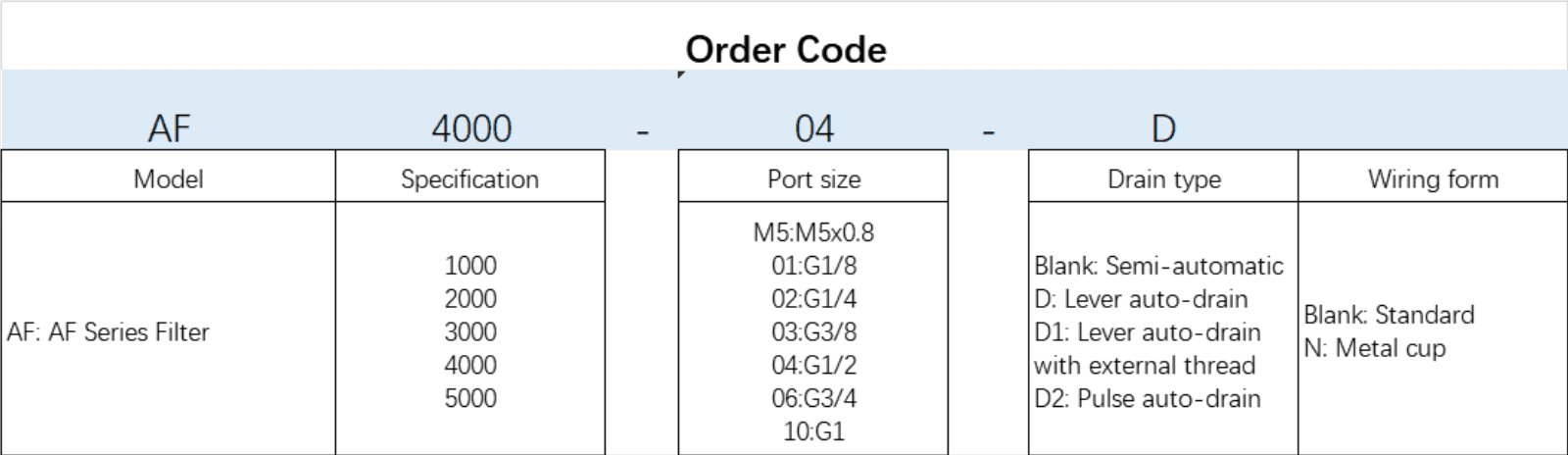

| AF | 4000 | - | 04 | - | D | |
| Model | Specification | Port size | Drain type | Wiring form | ||
| AF: AF Series Filter | 1000 2000 3000 4000 5000 | M5:M5x0.8 01:G1/8 02:G1/4 03:G3/8 04:G1/2 06:G3/4 10:G1 | Blank: Semi-automatic D: Lever auto-drain D1: Lever auto-drain with external thread D2: Pulse auto-drain | Blank:Standard N: Metal cup |

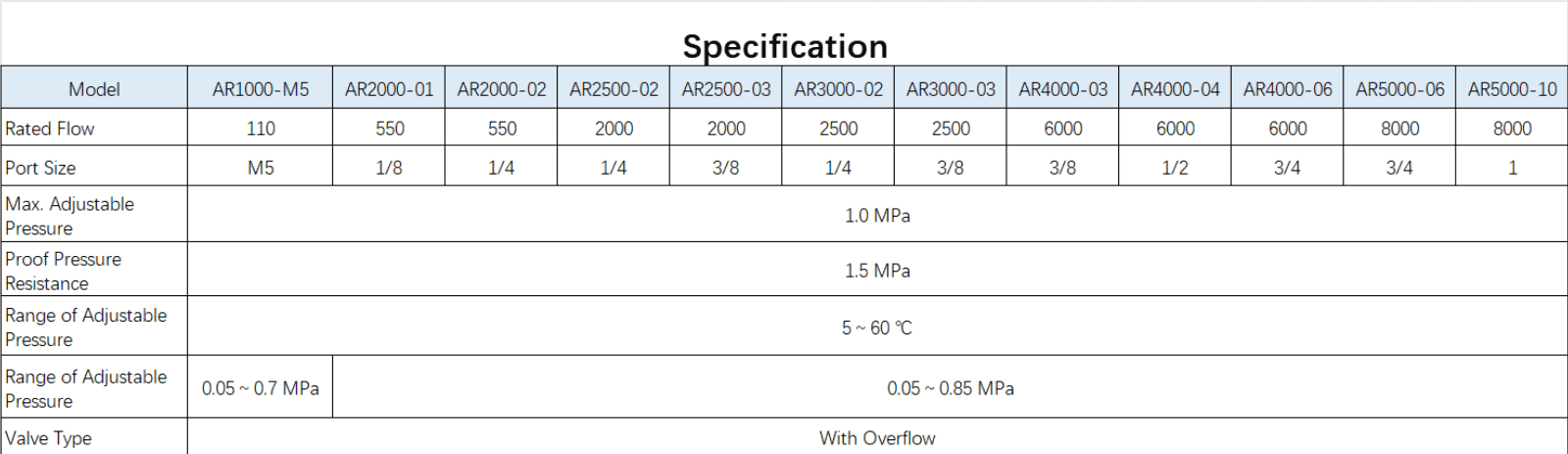

| Model | AR1000-M5 | AR2000-01 | AR2000-02 | AR2500-02 | AR2500-03 | AR3000-02 | AR3000-03 | AR4000-03 | AR4000-04 | AR4000-06 | AR5000-06 | AR5000-10 |
| Rated Flow | 110 | 550 | 550 | 2000 | 2000 | 2500 | 2500 | 6000 | 6000 | 6000 | 8000 | 8000 |
| Port Size | M5 | 1/8 | 1/4 | 1/4 | 3/8 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 |
| Max. Adjustable Pressure | 1.0MPa | |||||||||||
| Proof Pressure Resistance | 1.5MPa | |||||||||||
| Operating Temperature Range | 5～60℃ | |||||||||||
| Range of Adjustable Pressure | 0.05～0.7MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa |
| Valve Type | With Overflow |

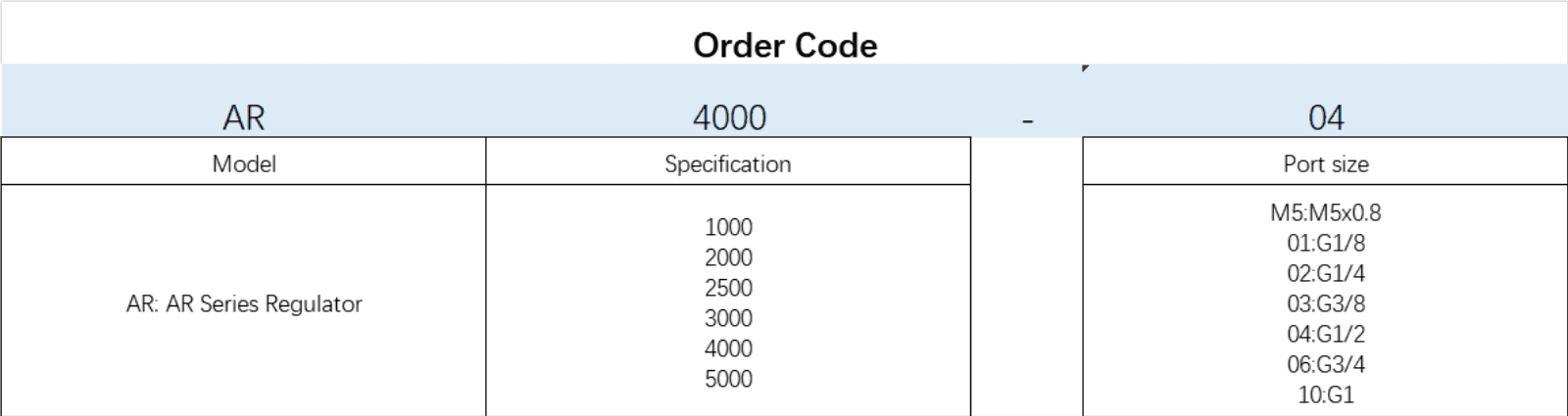

| AR | 4000 | - | 04 |
| Model | Specification | Port size | |
| AR: AR Series Regulator | 1000 2000 2500 3000 4000 5000 | M5:M5x0.8 01:G1/8 02:G1/4 03:G3/8 04:G1/2 06:G3/4 10:G1 |
| Model | AW1000-M5 | AW2000-01 | AW2000-02 | AW3000-02 | AW3000-03 | AW4000-03 | AW4000-04 | AW4000-06 | AW5000-06 | AW5000-10 |
| Rated Flow | 100 | 550 | 550 | 2000 | 2000 | 4000 | 4000 | 4500 | 5500 | 5500 |
| Port Size | M5 | 1/8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 |
| Filter Precision | 25 μm | |||||||||
| Max. Adjustable Pressure | 1.0 MPa | |||||||||
| Proof Pressure Resistance | 1.5 MPa | |||||||||
| Operating Temperature Range | 5～60℃ | |||||||||
| Range of Adjustable Pressure | 0.05～0.7MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa | 0.05～0.85MPa |
| Container Material | Poly Carbonate | |||||||||
| Container Cup | Unavailable | Unavailable | Unavailable | Iron | Iron | Iron | Iron | Iron | Iron | Iron |
| Drain Function | Differential Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain | Semi-automatic Drain, Automatic Drain |
| Valve Type | With Overflow |
| AW | 4000 | - | 04 | - | D | |
| Model | Specification | Port size | Drain type | Wiring form | ||
| AW: AW Series Filter & Regulator | 1000 2000 3000 4000 5000 | M5:M5x0.8 01:G1/8 02:G1/4 03:G3/8 04:G1/2 06:G3/4 10:G1 | Blank: Semi-automatic D: Lever auto-drain D1: Lever auto-drain with external thread D2: Pulse auto-drain | Blank:Standard N: Metal cup |
| Model | AL1000-M5 | AL2000-01 | AL2000-02 | AL3000-02 | AL3000-03 | AL4000-03 | AL4000-04 | AL4000-06 | AL5000-06 | AL5000-10 |
| Rated Flow | 95 | 800 | 800 | 1700 | 1700 | 5000 | 5000 | 6300 | 7000 | 7000 |
| Port Size | M5 | 1/8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 |
| Max. Adjustable Pressure | 1.0 MPa | |||||||||
| Proof Pressure Resistance | 1.5 MPa | |||||||||
| Operating Temperature Range | 5～60℃ | |||||||||
| Recommended Lubricant | ISO VG 32 | |||||||||
| Container Material | Poly Carbonate |
| AL | 4000 | - | 04 | - | N | |
| Model | Specification | Port size | Drain type | Wiring form | ||
| AL: AL Series Lubricator | 1000 2000 3000 4000 5000 | M5:M5x0.8 01:G1/8 02:G1/4 03:G3/8 04:G1/2 06:G3/4 10:G1 | Blank: Semi-automatic D: Lever auto-drain D1: Lever auto-drain with external thread D2: Pulse auto-drain | Blank:Standard N: Metal cup |
