A.B Series

AC1500~BC4000: F.R.L. Combination
AFC1500~BFC4000: F.R.L. Combination
AF1500~BF4000: Filter
AR1500~BR4000: Regulator
AFR1500~BFR4000: Filter & Regulator
AL1500~BL4000: Lubricator

*AC1500~BC4000: F.R.L. Combination

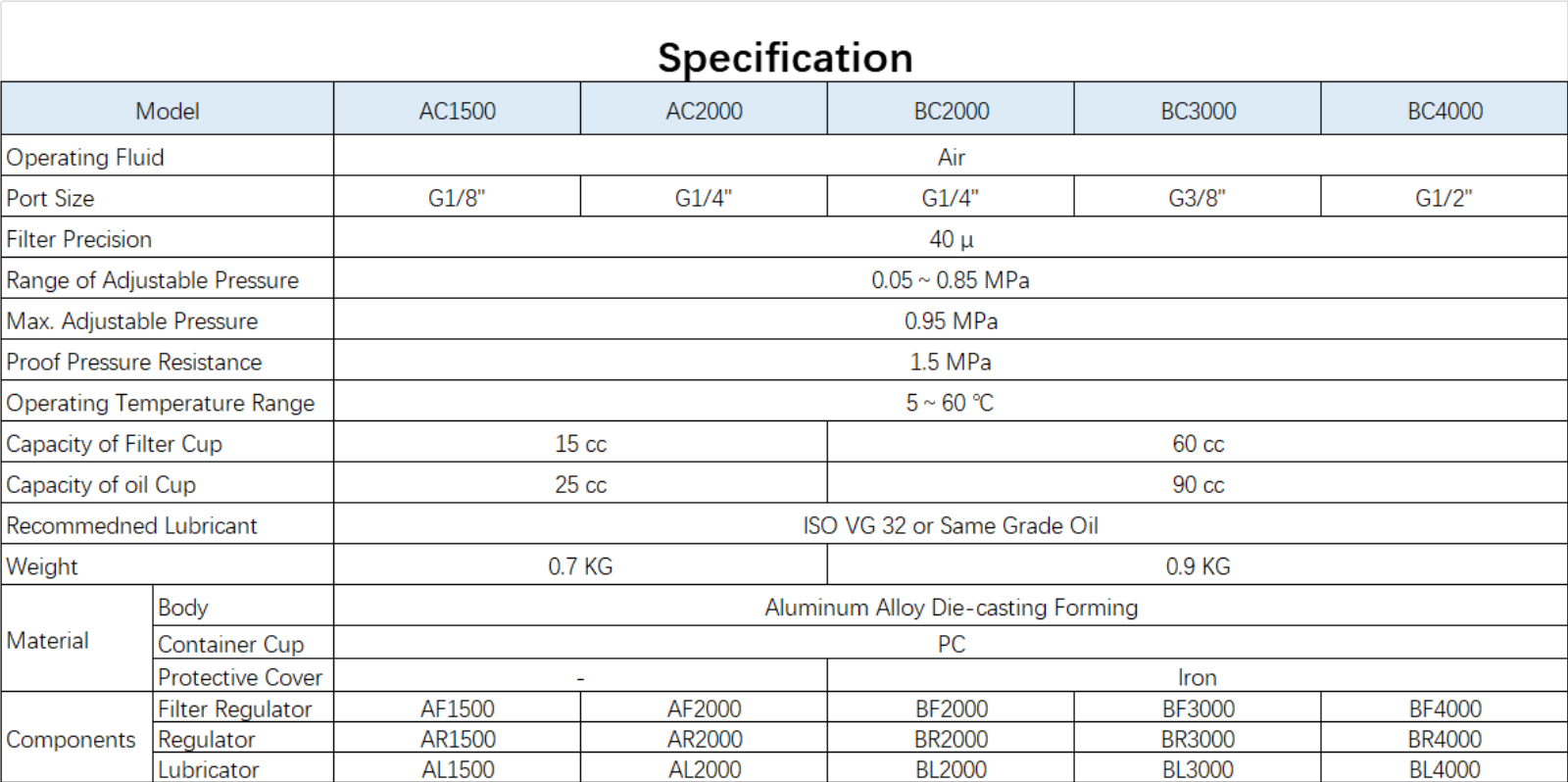

Specification

Model		AC1500	AC2000	BC2000	BC3000	BC4000
Operating Fluid			Air
Port Size		G1/8"	G1/4"	G1/4"	G3/8"	G1/2"
Filter Precision			40 μ
Range of Adjustable Pressure			0.05～0.85 MPa
Max. Adjustable Pressure			0.95 MPa
Proof Pressure Resistance			1.5 MPa
Operating Temperature Range			5～60 ℃
Capacity of Filter Cup		15 cc	15 cc	60 cc	60 cc	60 cc
Capacity of oil Cup		25 cc	25 cc	90 cc	90 cc	90 cc
Recommedned Lubricant			ISO VG 32 or Same Grade Oil
Weight		0.7 KG	0.7 KG	0.9 KG	0.9 KG	0.9 KG
Material	Body		Aluminum Alloy Die-casting Forming
	Container Cup		PC
	Protective Cover	-	-	Iron	Iron	Iron
Components	Filter Regulator	AF1500	AF2000	BF2000	BF3000	BF4000
	Regulator	AR1500	AR2000	BR2000	BR3000	BR4000
	Lubricator	AL1500	AL2000	BL2000	BL3000	BL4000

Order Code

BC	3000	-	D
Model	Port size		Drain type
AC: A Series F.R.L. Combination	1500: G1/8 2000: G1/4		Blank: Semi-automatic D: Automatic
BC: B Series F.R.L. Combinatio	2000: G1/4 3000: G3/8 4000: G1/2

*AFC1500~BFC4000: F.R.L. Combination

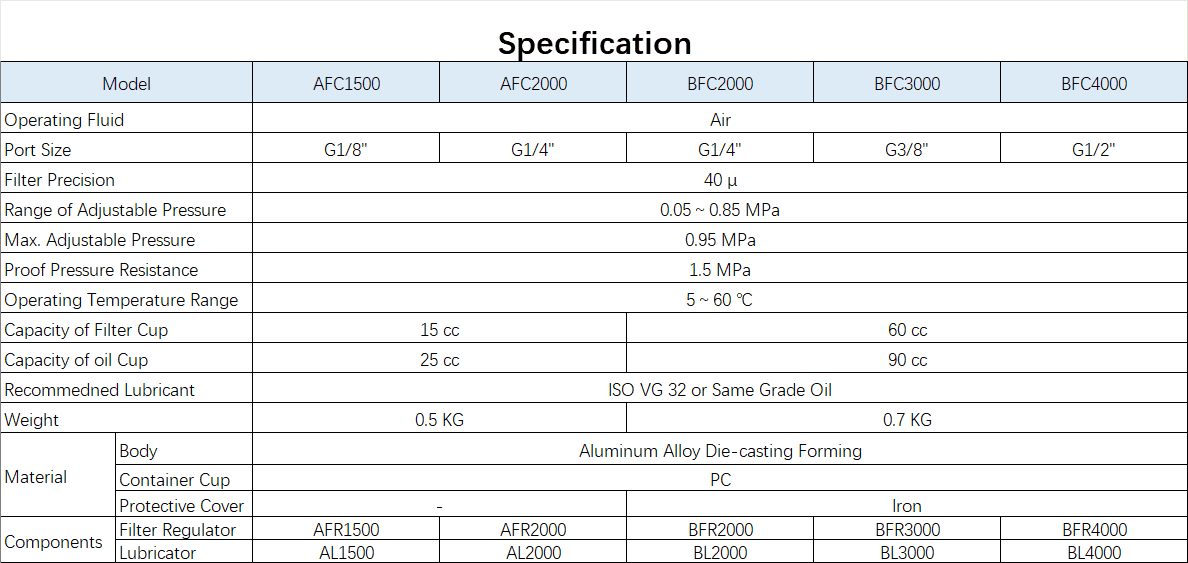

Specification

Model		AFC1500	AFC2000	BFC2000	BFC3000	BFC4000
Operating Fluid			Air
Port Size		G1/8"	G1/4"	G1/4"	G3/8"	G1/2"
Filter Precision			40 μ
Range of Adjustable Pressure			0.05～0.85 MPa
Max. Adjustable Pressure			0.95 MPa
Proof Pressure Resistance			1.5 MPa
Operating Temperature Range			5～60 ℃
Capacity of Filter Cup		15 cc	15 cc	60 cc	60 cc	60 cc
Capacity of oil Cup		25 cc	25 cc	90 cc	90 cc	90 cc
Recommedned Lubricant			ISO VG 32 or Same Grade Oil
Weight		0.5 KG	0.5 KG	0.7 KG	0.7 KG	0.7 KG
Material	Body		Aluminum Alloy Die-casting Forming
	Container Cup		PC
	Protective Cover	-	-	Iron	Iron	Iron
Components	Filter Regulator	AFR1500	AFR2000	BFR2000	BFR3000	BFR4000
	Lubricator	AL1500	AL2000	BL2000	BL3000	BL4000

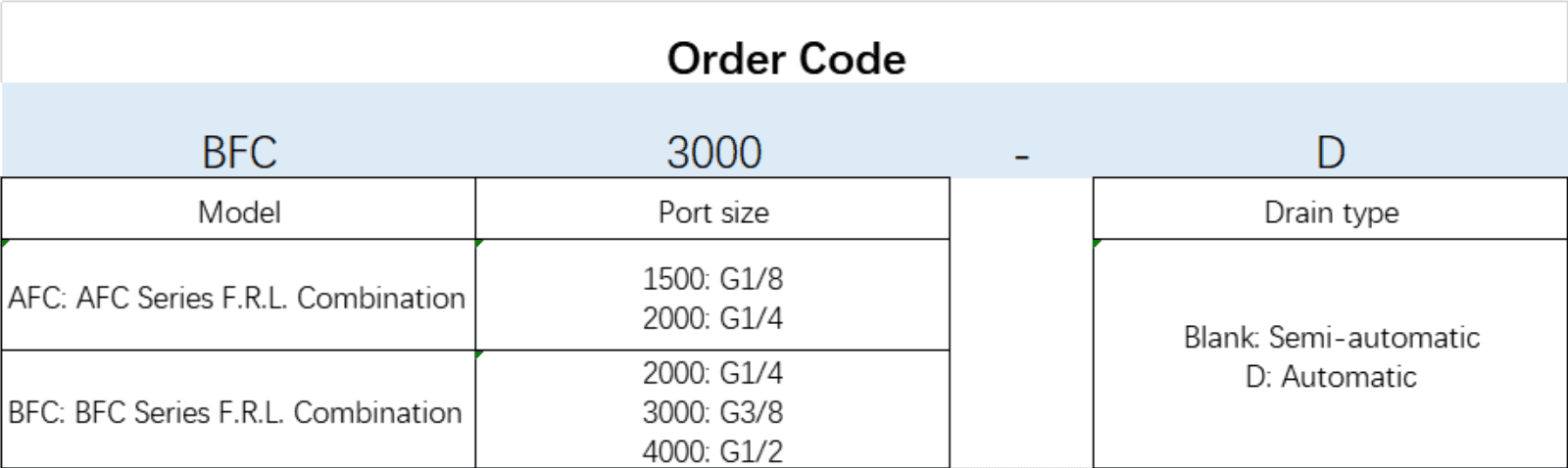

Order Code

BFC	3000	-	D
Model	Port size		Drain type
AFC: AFC Series F.R.L. Combination	1500: G1/8 2000: G1/4		Blank: Semi-automatic D: Automatic
BFC: BFC Series F.R.L. Combination	2000: G1/4 3000: G3/8 4000: G1/2

*AF1500~BF4000: Filter

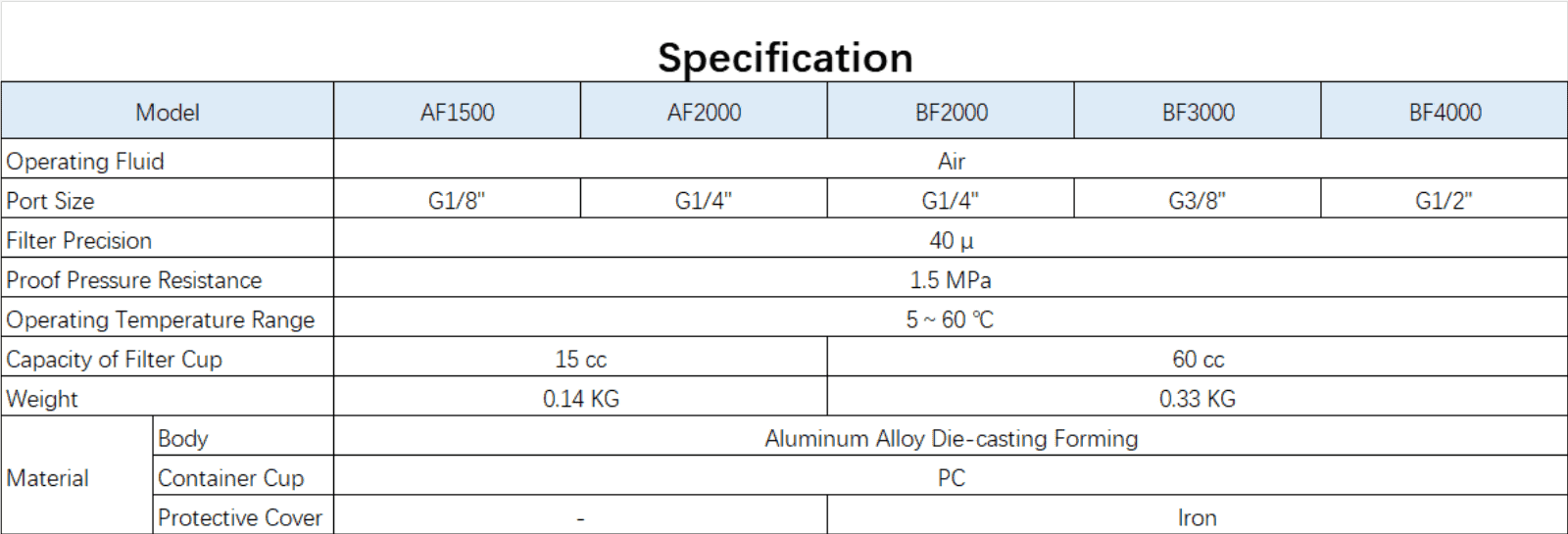

Specification

Model		AF1500	AF2000	BF2000	BF3000	BF4000
Operating Fluid			Air
Port Size		G1/8"	G1/4"	G1/4"	G3/8"	G1/2"
Filter Precision			40 μ
Proof Pressure Resistance			1.5 MPa
Operating Temperature Range			5～60 ℃
Capacity of Filter Cup		15 cc	15 cc	60 cc	60 cc	60 cc
Weight		0.14 KG	0.14 KG	0.33 KG	0.33 KG	0.33 KG
Material	Body		Aluminum Alloy Die-casting Forming
	Container Cup		PC
	Protective Cover	-	-	Iron	Iron	Iron

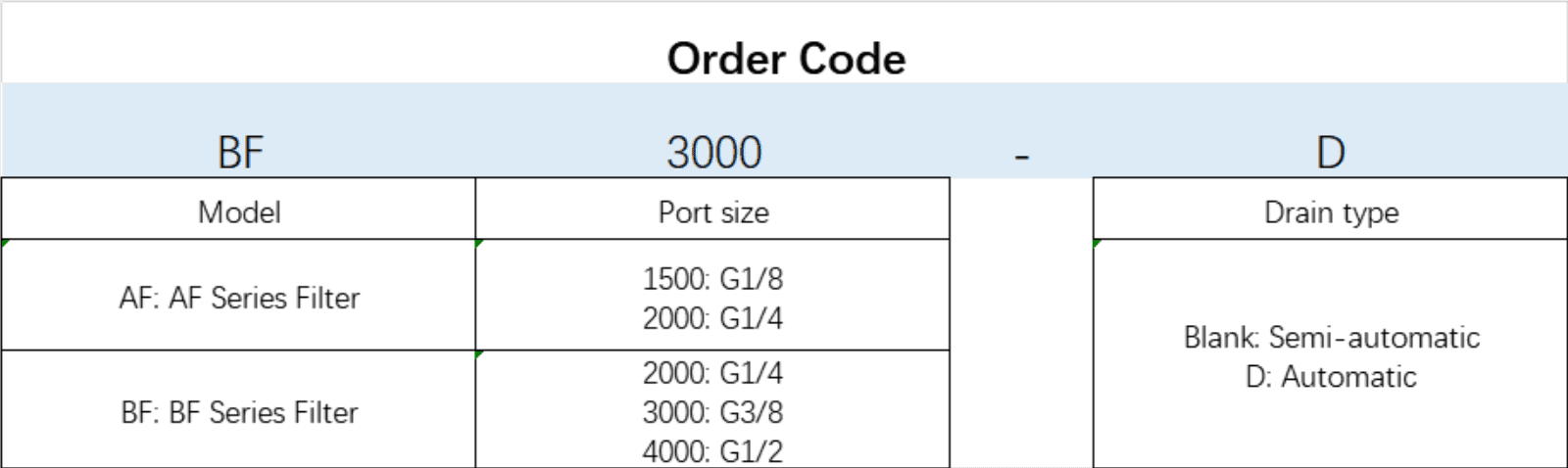

Order Code

BF	3000	-	D
Model	Port size		Drain type
AF: AF Series Filter	1500: G1/8 2000: G1/4		Blank: Semi-automatic D: Automatic
BF: BF Series Filter	2000: G1/4 3000: G3/8 4000: G1/2

*AR1500~BR4000: Regulator

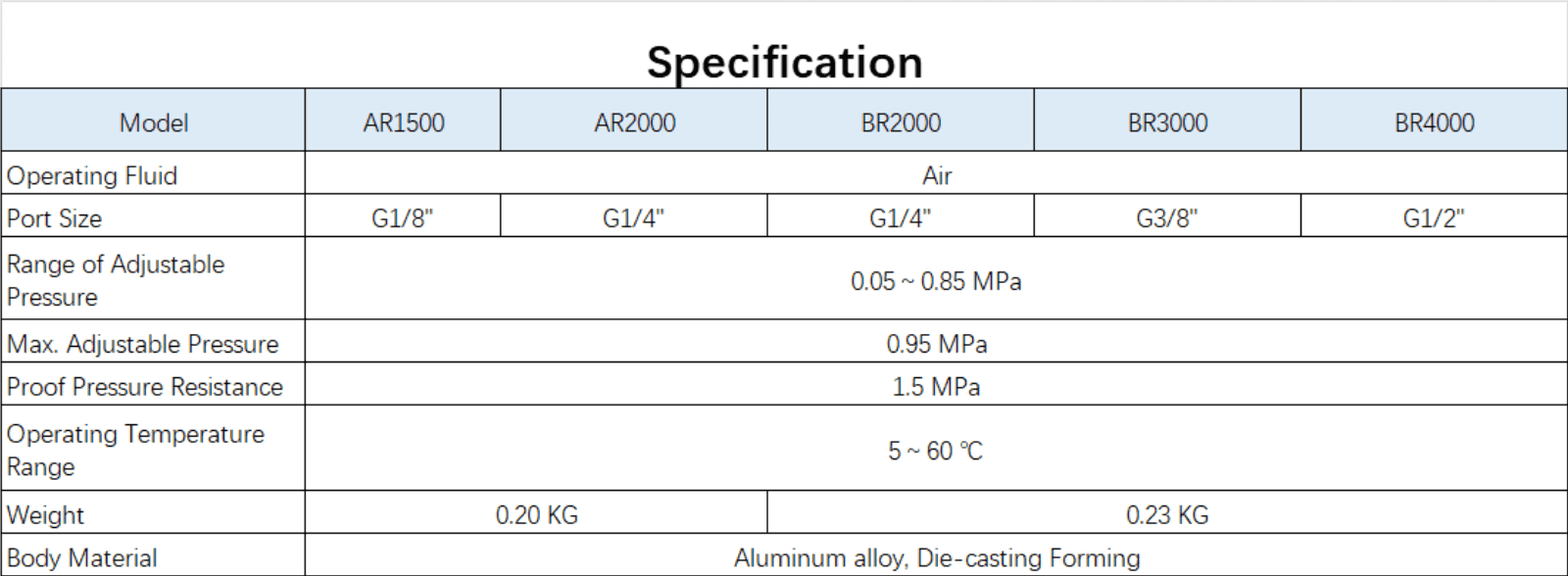

Specification

Model	AR1500	AR2000	BR2000	BR3000	BR4000
Operating Fluid			Air
Port Size	G1/8"	G1/4"	G1/4"	G3/8"	G1/2"
Range of Adjustable Pressure			0.05～0.85MPa
Max. Adjustable Pressure			0.95MPa
Proof Pressure Resistance			1.5MPa
Operating Temperature Range			5～60℃
Weight	0.20 KG	0.20 KG	0.23 KG	0.23 KG	0.23 KG
Body Material			Aluminum Alloy Die-casting Forming

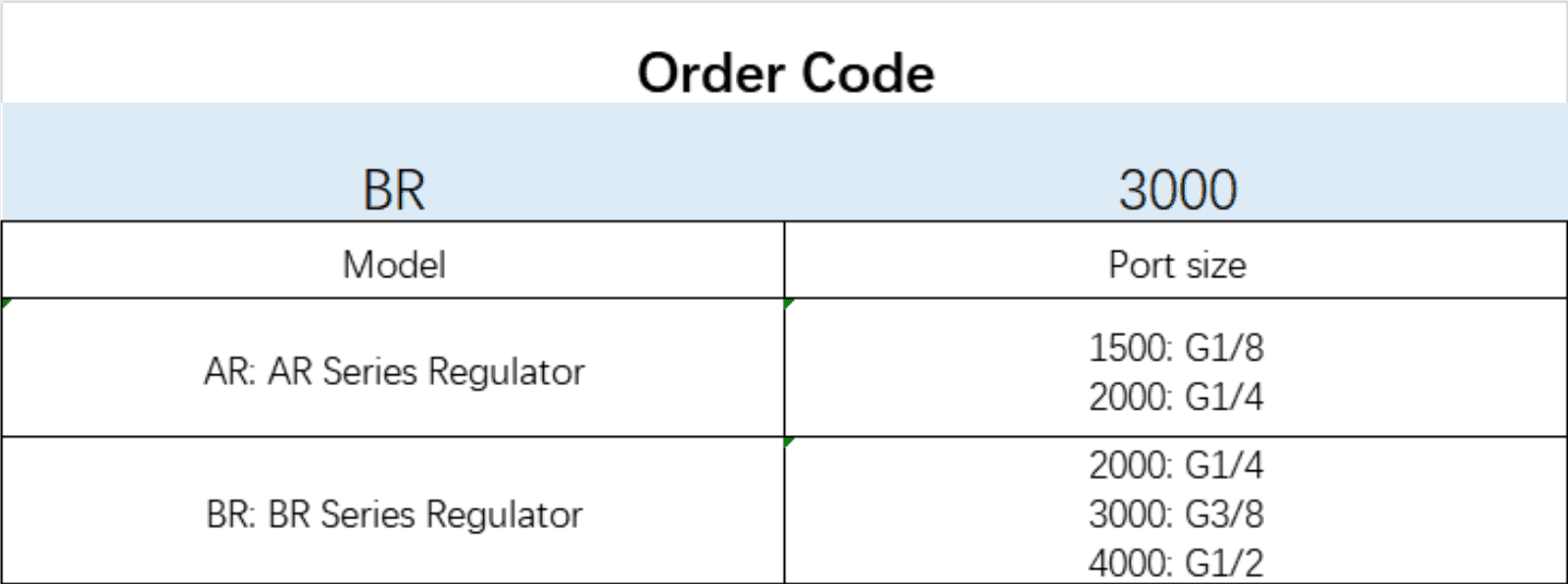

Order Code

BR	3000
Model	Port size
AR: AR Series Regulator	1500: G1/8 2000: G1/4
BR: BR Series Regulator	2000: G1/4 3000: G3/8 4000: G1/2

*AFR1500~BFR4000: Filter & Regulator

Specification

Model		AFR1500	AFR2000	BFR2000	BFR3000	BFR4000
Operating Fluid				Air
Port Size		G1/8"	G1/4"	G1/4"	G3/8"	G1/2"
Range of Adjustable Pressure				0.05～0.85MPa
Max. Adjustable Pressure				0.95MPa
Proof Pressure Resistance				1.5MPa
Operating Temperature Range				5～60℃
Capacity of Filter Cup		15 cc	15 cc	60 cc	60 cc	60 cc
Weight		0.26 KG	0.26 KG	0.4 KG	0.4 KG	0.4 KG
Material	Body			Aluminum Alloy Die-casting Forming
	Container Cup			PC
	Protective Cover	-	-	Iron	Iron	Iron

Order Code

BFR	2000	-	D
Model	Port size		Drain type
AFR: AFR Series Filter & Regulator	1500: G1/8 2000: G1/4		Blank: Semi-automatic D: Automatic
BFR: BFR Series Filter & Regulator	2000: G1/4 3000: G3/8 4000: G1/2

*AL1000~AL5000 Lubricator

Specification

Model		AL1500	AL2000	BL2000	BL3000	BL4000
Operating Fluid				Air
Port Size		G1/8"	G1/4"	G1/4"	G3/8"	G1/2"
Proof Pressure Resistance				1.5MPa
Operating Temperature Range				5～60℃
Recommedned Lubricant				ISO VG 32 or Same Grade Oil
Capacity of Filter Cup		25 cc	25 cc	90 cc	90 cc	90 cc
Weight		0.17 KG	0.17 KG	0.25 KG	0.25 KG	0.25 KG
Material	Body			Aluminum Alloy Die-casting Forming
	Container Cup			PC
	Protective Cover	-	-	Iron	Iron	Iron

Order Code

BL	3000
Model	Port size
AL: AL Series Lubricator	1500: G1/8 2000: G1/4
BL: BL Series Lubricator	2000: G1/4 3000: G3/8 4000: G1/2
